Indoor P3.91 Rental Led Video Wall Panel Diecasting Aluminum 500mm*500mm Led Display Screen Indoor Stage Backdrground
Подробная информация о продукте:
| Place of Origin: | Guangdong, China |
| Фирменное наименование: | LED King |
| Сертификация: | CE FCC ISO |
| Model Number: | Indoor P3.91 |
Оплата и доставка Условия:
| Minimum Order Quantity: | 1 |
|---|---|
| Цена: | $124 |
| Packaging Details: | Flight case |
| Delivery Time: | 15days |
| Payment Terms: | T/T |
| Supply Ability: | According to your needs |
|
Подробная информация |
|||
| Control system: | NOVA Star | Life Span: | 100000Hours |
|---|---|---|---|
| IC: | Chipone ICN1065 | Cabinet Material: | Die-casting Aluminium |
| Panel Weight: | 7kg | Scan Rate: | 1/16S |
| Выделить: | P3.91 indoor LED display panel,500x500mm rental LED video wall,diecasting aluminum LED stage screen |
||
Характер продукции

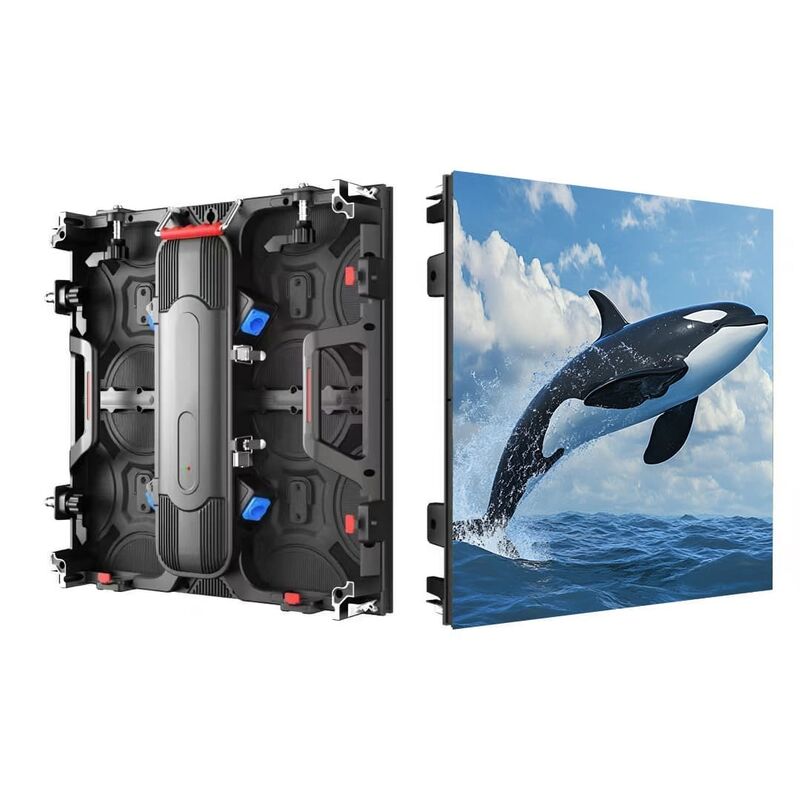

Indoor P3.91 Rental LED Video Wall Panel
Die-casting aluminum 500mm*500mm LED display screen for indoor stage backgrounds with superior visual performance.
Technical Specifications
| Module Specifications | ||
|---|---|---|
| Module Size | 250mm(W)*250mm(H) | |
| Pixel Pitch | 3.91mm | |
| Pixel Density | 65536 dots/㎡ | |
| Pixel Configuration | 1R1G1B | |
| LED Specification | SMD1921 | |
| Pixel Resolution | 64*64 dots | |
| Max Power Consumption | 40W | |
| Panel Weight | 0.6KG | |
| Cabinet Specifications | ||
|---|---|---|
| Cabinet Size | 500*500mm | |
| Cabinet Resolution | 128*128 dots | |
| Quantity of Panels | 4pcs | |
| Hub Connecting | HUB75-E | |
| Material | Die-casting aluminum | |
| Maintenance Method | Front/Back service | |
| Best Viewing Angle | 170/120° | |
| Power Supply | AC110V/220V-5V60A | |
| Max Power Consumption | 800W/㎡ | |
| Average Power Consumption | 400W/m² | |
| Technical Signal Index | ||
|---|---|---|
| Driving IC | ICN1065 | |
| Scan Rate | 1/16S | |
| Refresh Frequency | 3840-7680HZ/S | |
| Display Color | 4096*4096*4096 (16bit) | |
| Contrast Ratio | 4000:1 | |
| Brightness | 800-1000 cd/㎡ | |
| Life Span | 100,000 Hours | |
| Best Viewing Distance | 3-30M | |
| Operating Temperature | -10℃~45℃ | |
| Operating Humidity | 10-90% | |
| IP Protective Index | IP43 | |
Key Features
- Ultra-high-definition 3.91mm pixel pitch delivers sharp, grain-free images even at close viewing distances
- Lightweight die-cast aluminum cabinet enables easy single-person installation with quick-lock mechanism
- High refresh rate (3840-7680Hz) eliminates scan lines and water ripples for professional photography
- Superior grayscale performance ensures smooth color transitions and enhanced image depth
- Black surface treatment technology provides 4000:1 contrast ratio for vibrant, saturated colors
- Durable rental-grade construction withstands repeated assembly/disassembly with low failure rate
- Front/back maintenance access allows quick module replacement without full cabinet disassembly

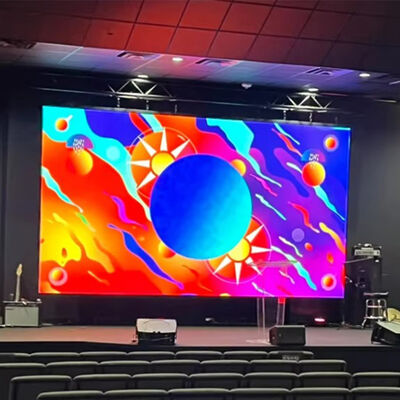

Application Scenarios
- High-end stage performances and concerts as main/side screens
- Corporate product launches and brand events
- TV studios and program recording backgrounds
- Commercial exhibitions and showroom displays
- Conference centers and hotel banquet backdrops
Certifications
CE, FCC, and ISO certified
Packaging
Case Study
