Indoor Small Pixel Pitch LED Display Screen Full Color P1.538 LED Video Wall for Meeting Room GOB Protect LED Indoor Display

Подробная информация о продукте:

Место происхождения: Гуандун, Китай
Фирменное наименование: LED King
Сертификация: CE FCC ISO
Номер модели: Крытый P2.9

Оплата и доставка Условия:

Количество мин заказа: 1
Цена: $279
Упаковывая детали: деревянный ящик
Время доставки: 15 дней
Условия оплаты: Т/Т
Поставка способности: Согласно вашим потребностям
Лучшая цена контакт

Подробная информация

Система управления: Новая звезда Материал шкафа: Алюминий-хит
Размер шкафа: 640*480 мм Размер модуля: 250*250 мм
Скорость сканирования: 1/52S Продолжительность жизни: 100000 часов
Выделить:

P1.538 indoor LED display

,

GOB protect LED video wall

,

full color meeting room LED screen

Характер продукции

Indoor Small Pixel Pitch LED Display Screen Full Color P1.538 LED Video Wall for Meeting Room GOB Protect LED Indoor Display
Technical Specifications
Module Specifications
Module Size 320mm(W)*160mm(H)
Pixel Pitch 1.538 mm
Pixel Density 422,500 dot/㎡
Pixel Configuration 1R1G1B
LED Specification SMD1212
Pixel Resolution 208 dot*104 dot
Max Power Consumption 33W
Panel Weight 0.3KG
Cabinet Specifications
Cabinet Size 640mm*480mm
Cabinet Resolution 384 dot * 216 dot
Quantity of Panel 6pcs
Hub Connecting HUB75-E
Material Die-casting aluminum cabinet
Maintenance Method Front/Back service
Best Viewing Angle 170/120°
Power Supply AC110V/220V-5V40A
Max Power Consumption 976W/㎡
Average power consumption 488W/m²
Technical Signal Index
Driving IC ICN1065
Scan Rate 1/52S
Refresh Frequency 3840-7680HZ/S
Display Color 4096*4096*4096(16bit)
Contrast Ratio 4000:1
Brightness 600-800 cd/㎡
Life Span 100000Hours
Best Viewing Distance 1-30M
Operating Temperature -10℃~60℃
Operating Humidity 10-70%
IP Protective Index IP43
Core Features and Advantages
  • Extremely detailed picture with no graininess upon viewing. High pixel density ensures sharpness and clarity even at close range, completely eliminating the graininess of traditional LED displays.
  • Truly seamless splicing maintains complete and unified image integrity without physical seams, providing superior visual immersion compared to DLP and LCD solutions.
  • True color reproduction with high color saturation, refresh rate, and grayscale levels delivers vibrant, realistic colors and smooth transitions without water ripple interference.
  • Stable, energy-efficient design with front maintenance capability, adjustable brightness, and flexible installation methods suitable for various high-end indoor applications.

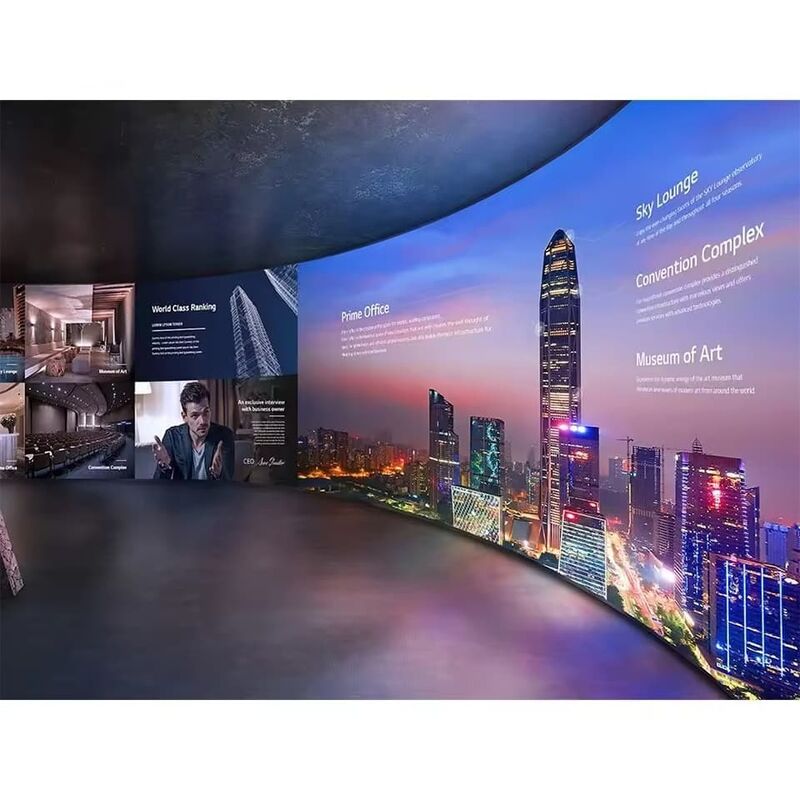

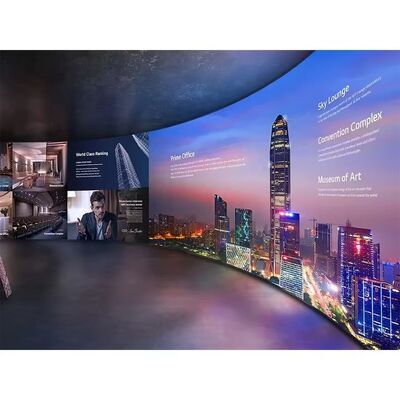

Indoor Small Pixel Pitch LED Display Screen Full Color P1.538 LED Video Wall for Meeting Room GOB Protect LED Indoor Display 0
Application Scenarios

Command and Control Centers: Used in locations requiring 24/7 operation and high-density information visualization, such as public security, emergency response, and military sectors for displaying GIS maps, surveillance videos, and data screens.

Broadcast and Television Studios: Serves as large background screens for news and variety shows, offering true-to-life colors without moiré patterns or water ripples during camera photography.

High-End Conference and Auditoriums: Replaces traditional projectors in boardrooms and auditoriums, supporting HD video playback and seamless display of presentations and documents.

Commercial Display and Brand Spaces: Applied in showrooms, retail stores, and museums for corporate branding, product promotion, and interactive experiences with stunning visual impact.

Certification
CE FCC ISO
Packaging
Indoor Small Pixel Pitch LED Display Screen Full Color P1.538 LED Video Wall for Meeting Room GOB Protect LED Indoor Display 1
Case Example

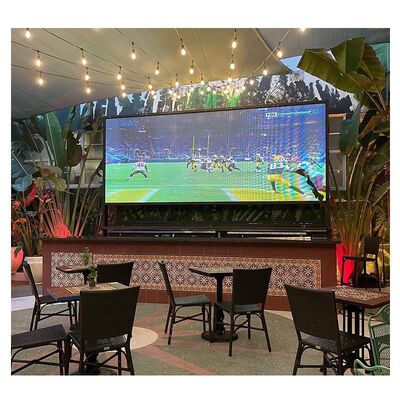

Indoor Small Pixel Pitch LED Display Screen Full Color P1.538 LED Video Wall for Meeting Room GOB Protect LED Indoor Display 2
